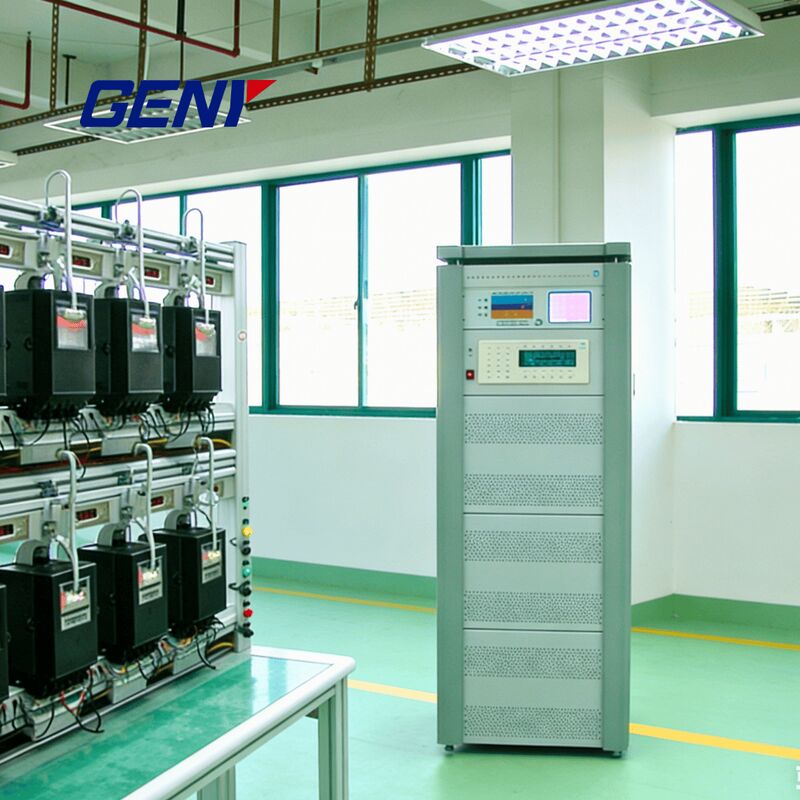

YCS-103 Three-Phase Power Source for Energy Meter Testing

Marka Adı:	GENY
Model Numarası:	YCSS-103
Adedi:	1
fiyat:	negotiate rates
Ödeme Şartları:	T/T, L/C, D/P, T/T
Tedarik Yeteneği:	10 adet/1 ay

Detay Bilgi

Ürün Tanımı

Detay Bilgi

Menşe yeri:

Çin

Sertifika:

ISO, CE

Belge:

Catalogue——Meter Test S...m..pdf

ayar doğruluğu:

Nihai aralık değerinde %0,05'ten daha iyi

İstikrar:

%0,005/saatten daha iyi (integrasyon süresi 150s)

Bozulma faktörü:

Doğrusal direnç yükü için% 0.3'ten daha iyi

Harmonikler:

2. - 21. Ücretsiz Programlanabilir

Voltaj besleme:

3×220/380V±10% veya özel 50/60Hz±2Hz

Akım çıktısını test edin:

3×(1mA – 100A)

Ambalaj bilgileri:

Kontrplak Kılıfları

Yetenek temini:

10 adet/1 ay

Vurgulamak:

three-phase power source for energy meters

stationary power source with warranty

energy meter testing power supply

Ürün Tanımı

YCS-103 Three-Phase Power Source for Energy Meter Testing

The YCS-103 Three-Phase Power Source is a high-precision, programmable power source designed for energy meter testing and calibration. It provides independent three-phase voltage and current outputs, making it suitable for testing both three-phase and single-phase electricity meters in laboratories, meter production lines, and test benches.

Key Features & Functions

Three independent voltage and current channels for accurate testing of three-phase and single-phase energy meters
High accuracy and long-term output stability ensures reliable and repeatable results for meter verification and calibration
Programmable harmonic output (2nd-41st harmonics) with adjustable harmonic amplitude and phase angle, compliant with modern meter testing standards
RS-232 communication interface enables fully automatic operation and easy integration with meter test bench systems
Optional built-in keyboard supports both manual control and PC-controlled operation
Rugged aluminum alloy housing provides lightweight, corrosion-resistant construction suitable for long-term industrial use
Comprehensive protection design with built-in protection against overload, voltage short-circuit, and current open-circuit
User-friendly control software with simple interface for fast setup, operation, and testing efficiency
CE certified and complies with EU health, safety, and EMC standards
