Sabit ölçüm cihazı test tezgahı
Created with Pixso.

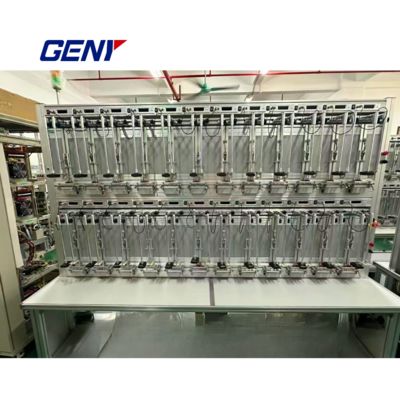

Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy

Customizable Three-Phase Energy Meter Verification Bench with 24-Meter Positions and 0.05% Setting Accuracy

Marka Adı: GENY
Model Numarası: YC1893D
Adedi: 1 adet
Fiyat: pazarlık edilebilir
Ödeme Şartları: L/c, t/t, d/p
Tedarik Yeteneği: Ayda 30 adet
Detay Bilgi
Menşe yeri:
ÇİN
Sertifika:
ISO, CE
Akım çıktısını test edin:
3 × (0.3mA - 20a)
Mevcut çıktının gücü:
3 × 1500VA
Gerilim çıkışının gücü:
3 × 1000VA
Frekans aralığı:
45Hz 65Hz
ayar doğruluğu:
Nihai aralık değerinde %0,05'ten daha iyi
İstikrar:
%0,005/saatten daha iyi (entegrasyon süresi 150 sn)
Ambalaj bilgileri:
kontrplak kılıfı
Yetenek temini:
Ayda 30 adet
Vurgulamak:

24-Meter Positions Energy Meter Test Bench

,

60° Bevel Structure Stationary Meter Test Bench

,

0.05% Setting Accuracy Three-Phase Energy Meter Verification Bench

Ürün Tanımı
Customizable Three-Phase Energy Meter Verification Bench Customized Part 1. Automatic Suspension Test Rack Three-phase 24-meter positions distributed on two sets of meter racks Each rack has two rows arranged on one side with 6 positions per row Equipped with rotatable mechanism Suspension rack adopts 60° bevel structure (adjustable angle) relative to horizontal plane Complete protection against direct and indirect electric shocks Three-color indicator light on top of each
