YC-1893D Electric Meter Calibration System for Utilities and Manufacturers

Marka Adı:	GENY
Model Numarası:	YC1893D
Adedi:	1
fiyat:	negotiate rates
Ödeme Şartları:	T/T, L/C, D/P, T/T
Tedarik Yeteneği:	5 set / 1 ay

Detay Bilgi

Ürün Tanımı

Detay Bilgi

Menşe yeri:

ÇİN

Sertifika:

ISO, CE

Belge:

Three-phase meter test syst...em.pdf

Güç kaynağı:

3P4W 3×380V±10%, 50Hz±2Hz

Çıkış voltajı aralığı (faz-nötr):

3 × 40V ila 450V

Frekans ayar aralığı:

45Hz ila 65Hz

Kullanım:

Enerji Meter Kalibrasyonu, Laboratuvar Araştırması

Ambalaj bilgileri:

Kontrplak Kılıfları

Yetenek temini:

5 set / 1 ay

Vurgulamak:

electric meter calibration system

stationary meter test system for utilities

YC-1893D meter calibration system

Ürün Tanımı

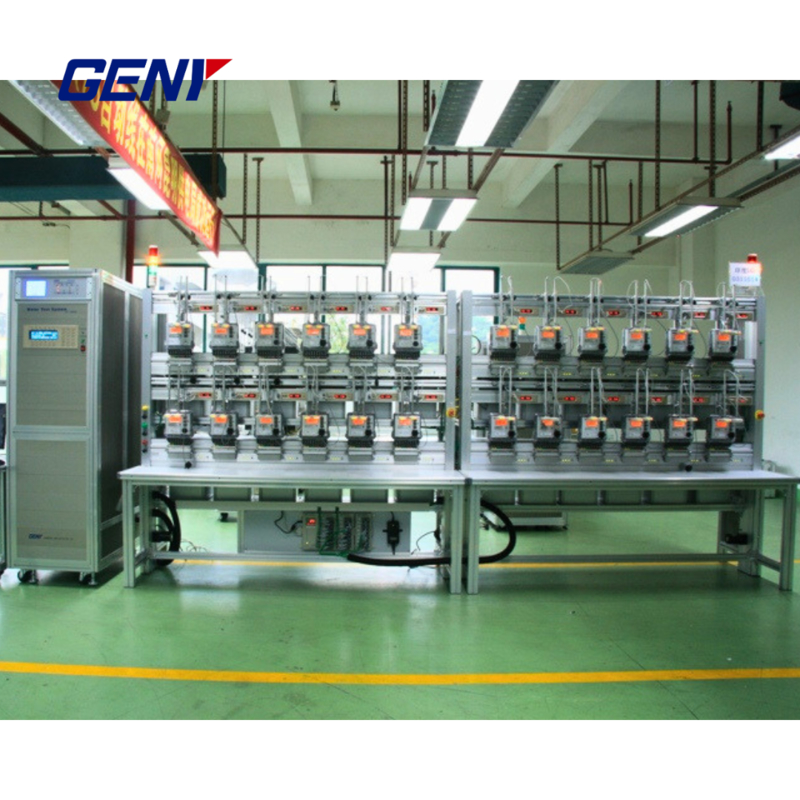

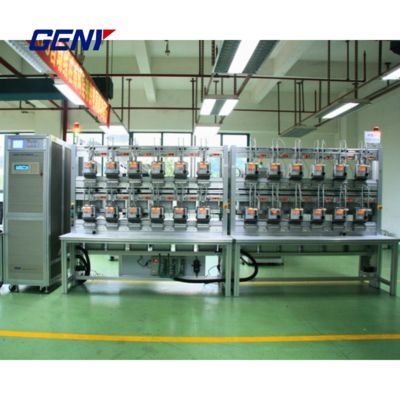

YC-1893D Electric Meter Calibration System for Utilities and Manufacturers

The YC-1893D Series Three-Phase Electricity Meter Calibration Device is a high-performance solution designed for accurate testing and calibration of three-phase electricity meters. It is widely used by power utilities, electricity meter manufacturers, metrology labs, quality inspection departments, and industrial and mining enterprises.

Supported Meter Types

Multifunctional electricity meters
Electronic and mechanical meters
Electromechanical integrated meters
Three-phase multi-user meters

Engineered for precision and reliability, the YC-1893D is ideal for ensuring meter accuracy and compliance with industry standards.

Technical Specifications

Parameter	Description
Power Supply	3P4W 3×380V±10%, 50Hz±2Hz
Ambient Temperature	-10℃ to +40℃
Ambient Humidity	35% to 95%
Output Voltage Range (Phase-to-Neutral)	3×40V to 450V
Output Voltage Power	3×1000VA (Maximum)
Voltage Resolution	0.01%
Voltage Stability	0.02%/120s
Load Change Rate	0.01%
Voltage Distortion	≤0.3%
Output Current Range	3×1mA to 120A (Maximum up to 230A upon customer request)
Output Current Power	3×2000VA (Maximum)
Current Resolution	0.01%
Current Stability	0.02%/120s
Current Distortion	≤0.3% (Full linear load range)
Continuous Current	100A
Maximum Continuous 20-Minute Current	120A
Phase Adjustment Range	0° to 360°
Phase Resolution	0.01°
Frequency Adjustment Range	45Hz to 65Hz
Frequency Resolution	0.01Hz
Power Output Stability	0.02%/120s
