Three Phase I-P Close Link Meter Testing Equipment for calibration 6 MTUs

Name: Three Phase I-P Close Link Meter Testing Equipment for calibration 6 MTUs
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Marka Adı:	GENY
Model Numarası:	YC1893D
Adedi:	1 adet
fiyat:	pazarlık edilebilir
Ödeme Şartları:	L/c, t/t, d/p
Tedarik Yeteneği:	100/yıl

Detay Bilgi

Ürün Tanımı

Detay Bilgi

Menşe yeri:

ÇİN

Sertifika:

ISO, CE

Belge:

Geny product brochure 2020.pdf

BİT'nin Doğruluk Sınıfı:

0.05 / 0.01

Test gerilimi çıkışı (Faz-Nötr):

3x ((24V ~ 288V) ((veya özel)

Frekans aralığı:

45Hz~65Hz

Voltaj besleme:

3x220/380V ±%10 (veya özelleştirilmiş) 50/60Hz ± 2Hz

Ambalaj bilgileri:

kontrplak kılıfı

Yetenek temini:

100/yıl

Vurgulamak:

Three Phase meter testing equipment

I-P Close Link calibration tool

Stationary meter test equipment with warranty

Ürün Tanımı

Three Phase I-P Close Link Meter Testing Equipment for calibration 6/12/24/48 MTUs

Guangzhou GENY Electric Co., Ltd. is a professional manufacturer of power metering and testing equipment, established in 2002. With the registered brand "GENY", we are known for reliable quality, innovative design, and strong industry expertise.

We focus on R&D and production of electric meter testing systems, serving utilities and industrial users with trusted solutions.

Specifications

1. Accuracy class : 0.05

2. Easy to calibrate I-P closed links meters with isolated current transformer(ICT)

Technical spec.	YC1893D-ICT-6	YC1893D-ICT-12	YC1893D-ICT-24	YC1893D-ICT-48
Number of meter positions equipped ICT	6	12	24	48
Accuracy class of ICT	0.05 / 0.01
Accuracy	0.05
Power Source	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Standard Meter	SZ03A-K6 / SZ03A-K8 (customized)
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3x(24V~288V)(or customized)
Power of the voltage output	Max. 3x100VA	Max. 3x250VA	Max. 3x500VA	Max. 3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3x(1mA~100A)
Power of the current output	Max. 3x150VA	Max. 3x350VA	Max. 3x750VA	Max. 3x1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Phase angle
Range	0~360⁰
Resolution	0.01⁰
Setting accuracy	0.1⁰
Frequency
Range	45Hz~65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of error displays	8 digitals
Other
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%

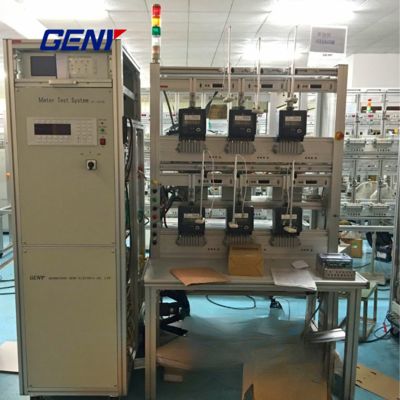

Three Phase I-P Close Link Meter Testing Equipment for calibration 6 MTUs 0

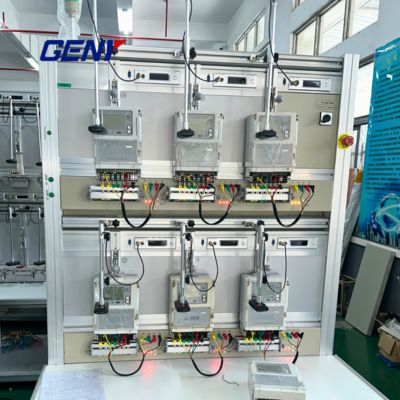

Three Phase I-P Close Link Meter Testing Equipment for calibration 6 MTUs 1
