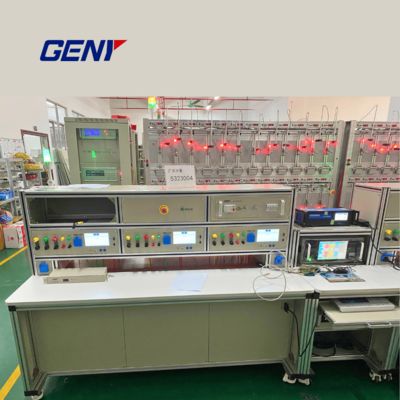

0.02% of Accuracy Class Three-phase Meter Test System with ICTs

0.02% of Accuracy Class Three-phase Meter Test System with ICTs

Marka Adı:	GENY
Model Numarası:	YC1893R
Adedi:	1 adet
fiyat:	pazarlık edilebilir
Ödeme Şartları:	L/C, T/T
Tedarik Yeteneği:	ayda 30 adet

Detay Bilgi

Ürün Tanımı

Detay Bilgi

Menşe yeri:

ÇİN

Sertifika:

ISO, CE

Gerilim:

3 × 240 ±% 15

Sıklık:

50 Hz ±% 15

Güç kapasitesi:

> 6 kVA

Güç Verimli (tam yükte):

≥85%

Ortam sıcaklığı:

-10 ° C -+40 ° C

Göreceli nem:

%35 -- %85

Ambalaj bilgileri:

Kontrplak kasa

Yetenek temini:

ayda 30 adet

Vurgulamak:

three-phase meter test system

stationary meter test equipment with ICTs

accuracy class meter test system

Ürün Tanımı

0.02% of Accuracy Class Three-phase Meter Test System with ICTs

Product Specifications

Attribute	Value
Voltage	3×240±15%
Frequency	50 Hz ±15%
Power capacity	> 6 kVA
Power efficient (at full load)	≥85%
Ambient temperature	-10 °C -- +40 °C
Relative humidity	35% -- 85%

Technical Specifications

The test bench is multiple positions up to 3 meters, 0.02% of accuracy class Three-phase Meter Test System with ICTs, with multiple serial port communication system for parallel communication for testing of smart meters.

Power Source

Voltage
Test voltage output (Phase-Neutral)	3×(24 V - 480 V) or 600 V F-F customized
Power of the voltage output	3×100VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.02% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd - 21st free programmable

Current
Test current output	0.3 mA - 120 A
Power of the current output	3×150VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.02% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd - 21st free programmable
